Weekly Wednesday Update #4

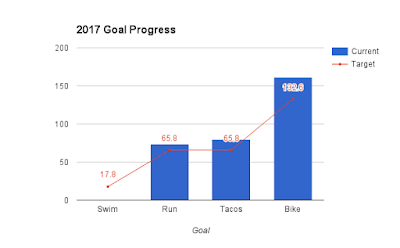

Goal Update

Miles Swam: 0 [0]

Miles Run: 19 [73.84]

Tacos Ate: 15 [80]

Miles Biked: 58.07 [161.11]

February will be pool time! Already 18 miles behind schedule! This week has been a recovery week (every 4 weeks), where I have been attempting to reduce mileage and effort by ~10-25%.

Things I worked on

Time is flying by! Wow. Started cracking open the books and doing practice problems in preparation for the Mechanical Engineering Principles and Practice of Engineering Exam in April! This is the last step needed to obtain my PE License; and to be honest, my book problem solving capabilities is a bit rusty. Well, I have about 3 months to study up and get ready for the 8-hour exam. The good news is it's already coming back. :)

As can be expected, while the amount of aerobic activity and studying increase over the next few weeks, the time in the shop will be a bit limited. Don’t worry though! This weekend I plan to build the rest of my new workbench, my new electronics enclosure and hopefully finish the 1000 → 1800mm upgrade to my X-Carve, effectively transforming it into what I will deem as the Z-Carve. I will try some to capture the mess on camera with stills, time lapse and video so stay tuned!

Line up remains the same, few things moved around:

• Aluminum Supports for 1800mm axis
• Work bench with enclosure
• Electronics case for Z-Carve
• Dust Shoe version 2 (version 1 post here)

Favorite Podcast of the Week

Bulletproof Radio’s Episode 377: The Neuroscience Behind Charm with Jordan Harbinger – #377

In this podcast, Dave interviews the host of another one of my favorite podcasts, Jordan Harbinger from the Art of Charm podcast. Throughout this interview you hear how AoC came to be and some of the crazy things Jordan has gone through during his lifetime. It is a very inspirational podcast that helps introduce the Art of Charm podcast and give it some credibility. Check it out and let me know what you think!

Favorite Quote(s) of the Week

"Being realistic is the most common path to mediocrity." - Will Smith

“Don't count on motivation; count on discipline." - Jocko Willink

Random of the Week

This week while working on my electronics case, I have had to dig into lots of [Raspi C#] code and wiring diagrams to begin making sense of the magic behind the electronics that we now take for granted. I forgot how much I enjoy diving into the nitty gritty details of these magic boxes! The attention to detail required is awesome as one mistake can cause a component to 1) not work [as anticipated], 2) break or 3) cause a fire. Don’t worry, I am doing my research and documenting the circuits with a nice free tool called Fritzing to ensure I put the electronics together correctly and don’t start a fire! This project also gives me the opportunity to add some safety features to my controller that I currently do not have such as fuses and motor kill switches. And so I don't feel like I am skipping out on studying for the PE exam, I have used this opportunity to jog my circuit analysis memories (honestly, with simple LED circuits where I basically only use V=IR) in order to size my resistors correctly.

While I understand the basics of circuits analysis and was rather good at it in college, it is honestly one area that takes me out of my comfort zone, which allows me to grow. This reminds me of another quote (gotcha!) “You never change your life until you step out of your comfort zone; change begins at the end of your comfort zone.” ― Roy T. Bennett.

This week I challenge you to step outside of your comfort zone, honestly, what’s the worse that could happen?

Time to write post: 34 minutes

X-Carve Upgrade - C-beam Z-axis

While trying to push the feed rates of my X-carve through some tougher materials, I began to notice some chatter in the Z-axis. This chatter was not up and down, but rather side to side. While the spindle was moving around (most notible in the Y-direction), the bit would chatter side to side (in X-direction) and could be stopped by holding the spindle with my hand. After some investigation, I found the spindle could be rocked side to side because the v-wheels on the Z-axis did contact the makerslide with equal pressure. After adjusting the eccentric nuts, the problem was reduced, but still noticable; therefore, I decided to replace the Z-axis assembly.

C-Beam Assembly

C-Beam Bundle Pack

To start off this upgrade, I purchased the 250mm C-Beam™ Linear Actuator Bundle without motor. It came nicely pacakged with all the parts to build it as pictured. After digging through many resources, I found these two videos that explain the assembly in depth.

1. Start this video at ~30 mins
2. Watch this video from the start

C-beam Z-Axis next to Stock Z-axis for X-carve

Additionally, I purchased the following items to make this build.

• 1 x Router/Spindle Mount
• 4 x Black Angle Corner Connector - to install router/spindle mount
• 1 x Low Profile Screws M5 (Length: 10mm) - to install router/spindle mount

Optional items purchased for belt reduction / install motor behind C-beam

• 1 x NEMA 23 Reduction / Stand Off Plate - to install motor on back side
• 1 x Low Profile Screws M5 (Length: 25mm) - replace 20mm screws with installation of NEMA 23 reduction /stand off plate
• 1 x 8mm Shim - place in-between top of reduction / stand off plate and 8mm pulley

Note: while building this, be sure to insert any t-slot nuts before placing both of the end plates on. I added 2 t-slot nuts to the two middle slots on the back side to install on the X-carriage. I also added 1 t-slot nut on each of the 4 side slots for installation of a dust shield at a later time.

T-nuts in two center slots of C-beam (view from back)

Installation onto X-carve

This was really easy. First, remove your spindle from the X-carve.

Stock Z-Axis with Spindle removed

Then remove the stock Z-Axis. Next, to install the C-beam, line up the TOP SET of t-nuts you dropped into the middle two slots on the back of the C-beam with the top holes on the X-carriage. Add screws loosely so you can still slide the C-beam up and down.

TOP SET of t-nuts attached to X-Carriage

Next slide the C-beam down, and align the BOTTOM SET of t-nuts with the bottom holes on the X-carriage. Add screws loosely, then slide the C-beam all the way up before tightening all the screws.

BOTTOM SET of t-nuts attached to X-Carriage

Finally, install the Spindle and tighten down the spindle mount.

Spindle and C-Beam on X-carve (no Z-Motor)

Belt Reduction Fun

Instead of mounting the motor over top of the C-beam, I opted to mount it behind the C-beam similar to how the X-carve does it. The only issue is that the 140mm belt that comes standard with the X-carve is too short.

For a temporary solution, I purchased qty:10-200mm belts from amazon utilizing a 8mm bore and a 6.35mm bore GT2 pulley (12mm diameter). Well the 200mm belts were too long, so I rigged up a few bearings to give a 200mm path so I could start carving. It's not pretty but it will work for now.

Since the standard belts didn't work I figured I would improve on the belt drive by adding in some belt reduction gears to improve my Z-accuracy and increase the torque. After much reading from here and here and here and here, I found my solution. I purchased this gear reduction from ebay with the 8mm bore 50T pulley (diameter ~ 51mm) and the 6.35mm bore 25T pulley (diameter ~ 26mm) and sent a message to the seller to get a wheelbase of 70.2 (length of belt ~270mm).

[Insert picture - once installed by 02/10/2017]

Conclusions

With the stock Z-axis on the X-carve, I was experiencing lots of side to side chatter in the Z-axis. This was due to the eccentric spacers and v-wheels not being tight enough no matter what I did. Many other people have upgraded their Z-axis to a linear slide like this, but I did not want to drill into my X-carriage or make any adapter plates. The C-beam linear rail is a bolt-on, un-doable and upgrade-able option that costs around the same as the linear slide. Overall, it has removed any Z-axis chatter I was seeing; now the weakest point is my X-axis (which I will upgrade to the new wide makerslide extrusion once it arrives). After about 3 hours of run time, I can already see the improvement! I am able to run slightly faster that I was with no signs of chatter!

Now its time to make a new dust shoe...
